Quickly open series Multi-Bag Filter Housings are designed for high-volume applications demanding frequent filter bag change-outs.Available in a wide variety of configurations with 4 to 24 filter bags per housing. Options include: various input/output positions and sizes, material choices and closure designs significantly reduce change-out time and lower operating costs.
According to the different opening methods, it can be divided into two types: spring assisted quick opening and hydraulic quick opening.
Spring assisted type, has a self-balancing V-clamp locking mechanism, and use a spring assisted hinged cover that is quick and easy to open and close with no tools required.

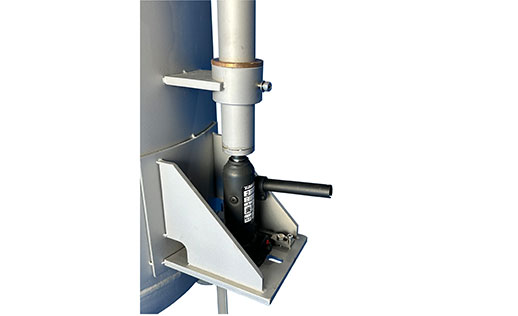

And hydraulic type, utilizing a totally unique sliding bracket retaining system , simply pump the lid activator handle and the Easy Open Lid will rotate and raise to a locked position in the time it takes to loosen one or two eyebolts on a conventional vessel.
The shell material available in grade SS304 and SS316L material of construction for selection.And glass bead blasting finishing as standard, meantime,poly coat , electro-polishing is option.
As standard, the multi bag series is provided with heady duty mounting bracket support legs and SS filter basket supplied to support for the filter bag.
Specifications:
> Max. Operating pressure: 150 psi (10 bars) at 212℉(100℃)
> Max. Operating temperature: 212℉(100℃)
> Seal Material: standard Buna‐N (EPDM/Viton/Teflon is option).
> Finishing: standard glass bead blasting (poly coat /electro‐polishing is option).
> Connections: Standard 150 Ib ANSI Flange. Side in/out in 3-8 bag housing, bottom in/out in 10-24 bag housing.
> Filter bag size: #2 (Area: 0.5m2)
> Quantity of filter bag: 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 and 24
