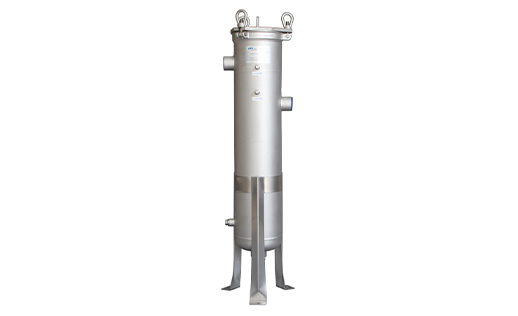

The MRBH Series is a high cost effective bag filter housings with heavy duty swing bolt top closure, and includes a wide selection of styles to suit general commercial and industrial liquid applications.
The plain cover with swing bolt top closure, provide a better sealing environment and easy to open the top cover and replacement the filter bags.
MRBH Series bag filter housing ,include MRBH4 has a shell diameter of 4”, and MRBH8 with a shell diameter 8”.The shell material available in grade SS304 and SS316L material of construction for selection.And glass bead blasting finishing as standard, meantime,poly coat , electro-polishing is option.
The standard inlet and outlet method is side in and bottom out, but MRBH8 provide extra side outlet as picture.
As standard, the MRBH series is provided with heady duty adjustable mounting bracket support legs and SS filter basket supplied to support for the filter bag.
Specifications:
> Max. Operating pressure: 150 psi (10 bars) at 212℉(100℃)
> Max. Operating temperature: 212℉(100℃)
> Sizes: 4” and 8” diameters.
> Seal Material: standard Buna‐N (EPDM/Viton/Teflon is option).
> Finishing: standard glass bead blasting (poly coat /electro‐polishing is option).
> Connections: Standard RF Flange (NPT/BSP/Victaulic coupling/ is option).
> Filter bag size: #1 and #2 for 7.5” & 8” housings; #3 and #4 for 4” housings
> Quantity of filter bag: 1.
