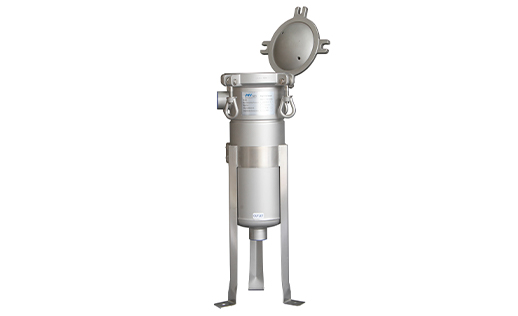

The MFBH Series features light weight and versatile , to suit general commercial and industrial liquid applications.
The cost effective stainless steel concave casting cover with 1/4” air vent, provide a better sealing environment and easy to open the top cover and replacement the filter bags.
The shell material available in grade SS304 and SS316L material of construction for selection.And glass bead blasting finishing as standard, meantime,poly coat , electro-polishing is option.
The standard inlet and outlet method is side in and bottom out.
As standard, the MFBH series is provided with heady duty adjustable mounting bracket support legs and SS filter basket supplied to support for the filter bag.
Specifications:
> Max. Operating pressure: 150 psi (10 bars) at 212℉(100℃);
> Max. Operating temperature: 212℉(100℃);
> Seal Material: standard Buna‐N (EPDM/Viton/Teflon is option);
> Finishing: standard glass bead blasting (poly coat /electro‐polishing is option);
> Connections: Standard RF Flange (NPT/BSP/Victaulic coupling/ is option);
> Filter bag size: #1 and #2;
> Quantity of filter bag: 1.
